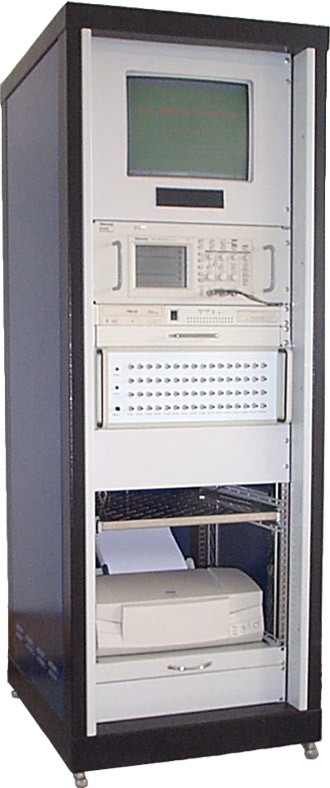

DBT-1100 type 1553B bus automatic tester

1553B bus network test equipment is an automatic test equipment for MIL-STD-1553B data bus cable media network. It is mainly used in the inspection, production, assembly and maintenance of the finished product of the MIL-STD-1553B bus cable media network, and the verification and verification of the rationality and validity of the bus network topology design. It has been widely used in the field of airborne / missile borne / satellite borne electronic equipment, ships, tanks and armored vehicles, and so on using MIL-STD-1553B bus communication
Main test items
Core line and insulation layer, the core wire and the core wire
Bus signal level test (V+/V-)
Signal phase difference test (phase)
Rise / fall time test (Uptime/Downtime)
Signal peak value and amplitude difference test (Vpp, Offset)
Amplitude attenuation test (Attenuation)
Zero crossing distortion test (Zerocrossingdeviation)
Waveform distortion test and waveform symmetry test
Data link integrity analysis
