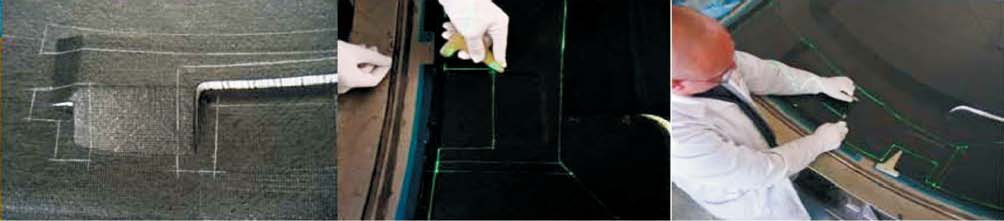

The outline of the drawing to be processed is projected on the processed object by a single laser point
The utility model is suitable for machining irregular shapes.

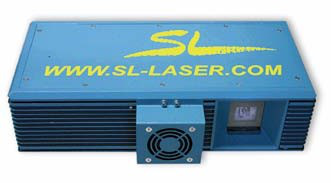

Product characteristics:
Positioning accuracy + 0.35mm (0.014 ") within the range of 17" x + 17 "within a distance of 15 feet
(4.5mx4.5m) in the region (equal to 60 degrees)
Horizontal angle of view: max. 80 degrees (recommended 60 degrees), the vertical viewing angle max. of 70 degrees (recommended for 60 degrees)
Laser maximum 5 MW, eye protection mode 0.9 MW
Red: 625-640 nm laser diode; green: 532 nm diode laser
Laser rating: Class IIIa, North America in line with the CDRH 21CFR1040 standard
International certification: laser grade Class 2M, CE certification
Typical applications: composites, aerospace / hull construction, fine woodworking, metal processing, special applications
|
|
